SI8708 Two Component Dielectric Insulation Liquid Silicone Gel
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Silicone Resin | Color | Clear/ Transparent |
|---|---|---|---|
| Part | Two Part | Sample | Free Samples |
| Packing | 20kg Per Set | Application | Electrical Insulation And Moisture Protection For Low-voltage Applications, Particularly Suitable For Insulating Cables And Wires In Junction Boxes. |
| Name | 2 Component Silicone Gel | Product Name | Two-component Silicone Gel |
| Appearance | Transparent Liquid | Report | RoHS REACH,ISO |
| OEM | Yeah | Keyword | Electric Insulation, Good Waterproof And Moisture Resistance , Silicone Gel |
| Usage | Circuit Board PCB Electronics |
Product Description
Two Component Dielectric Insulation Liquid Silicone Gel SI8708
∎Product Description
SI8708 is two-component transparent self-healing silicone gel, when cured it will become elastomer with buffer and self-recovery property. Used
to isolate moisture and other noxious pollutant from contacting the circuit board, also used as dielectric of high voltage. The other usage is stress
relief for protecting circuit and interconnect devices from high temperature and mechanical stress.
∎Typical Applications

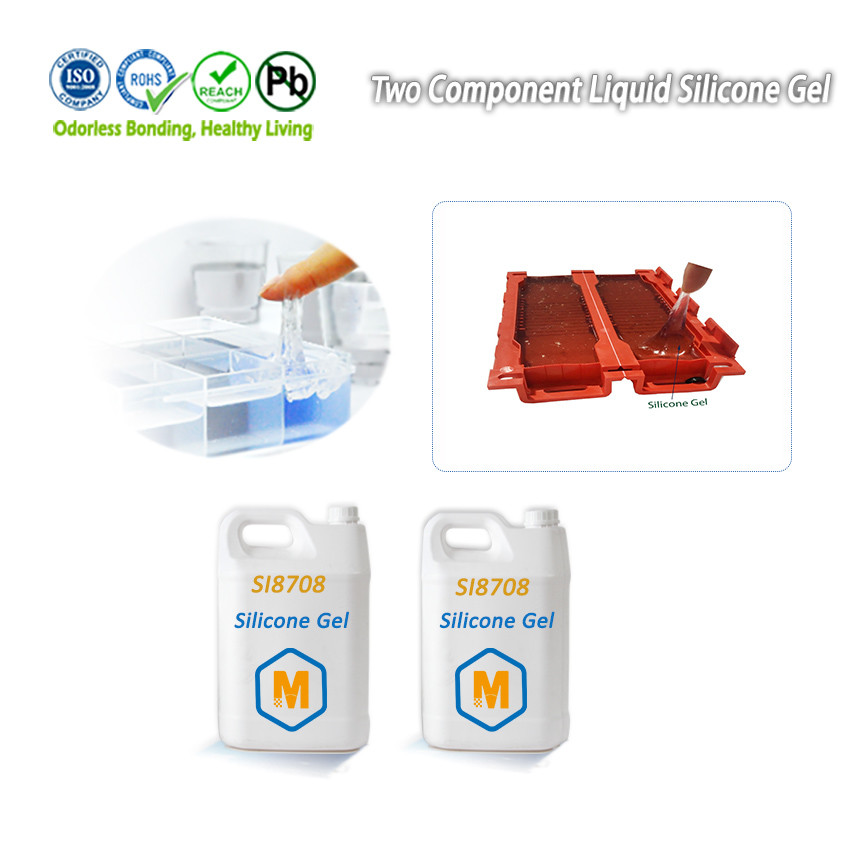

●Used for encapsulation of various modules, semi-conductor, IGBT, automotive ECU module, IC chip, weighing sensor, waterproof connector.

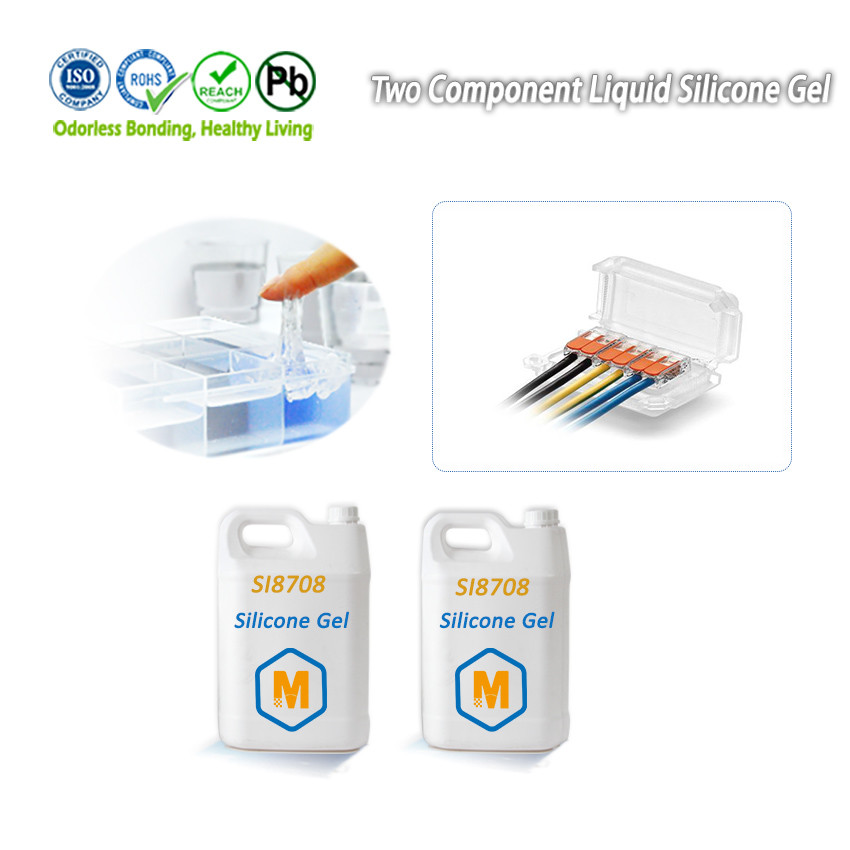

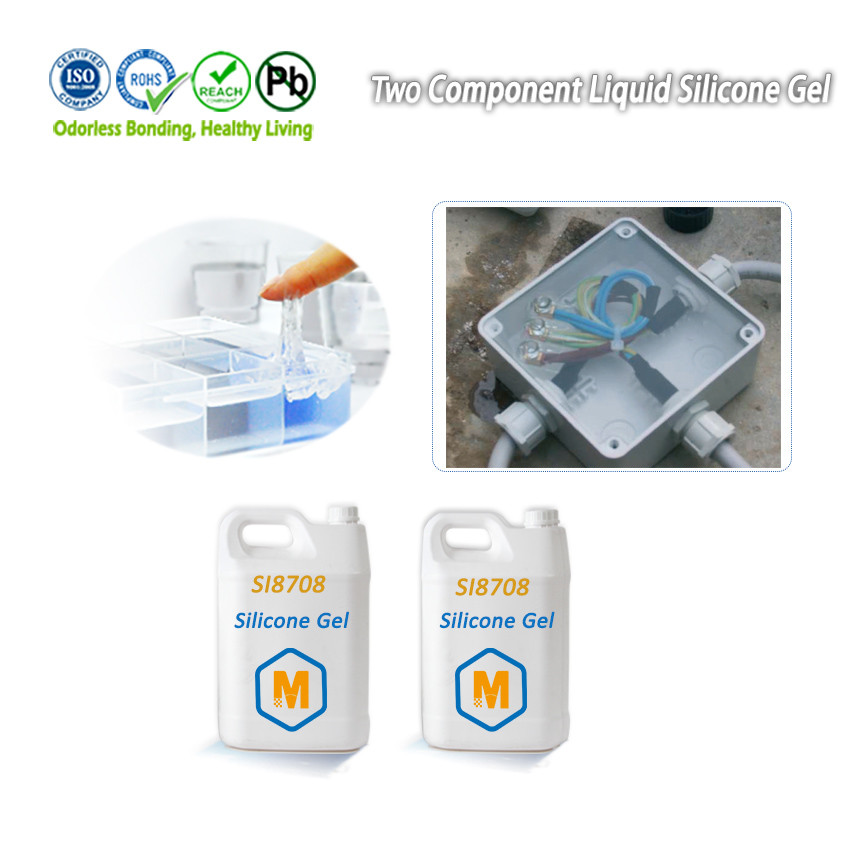

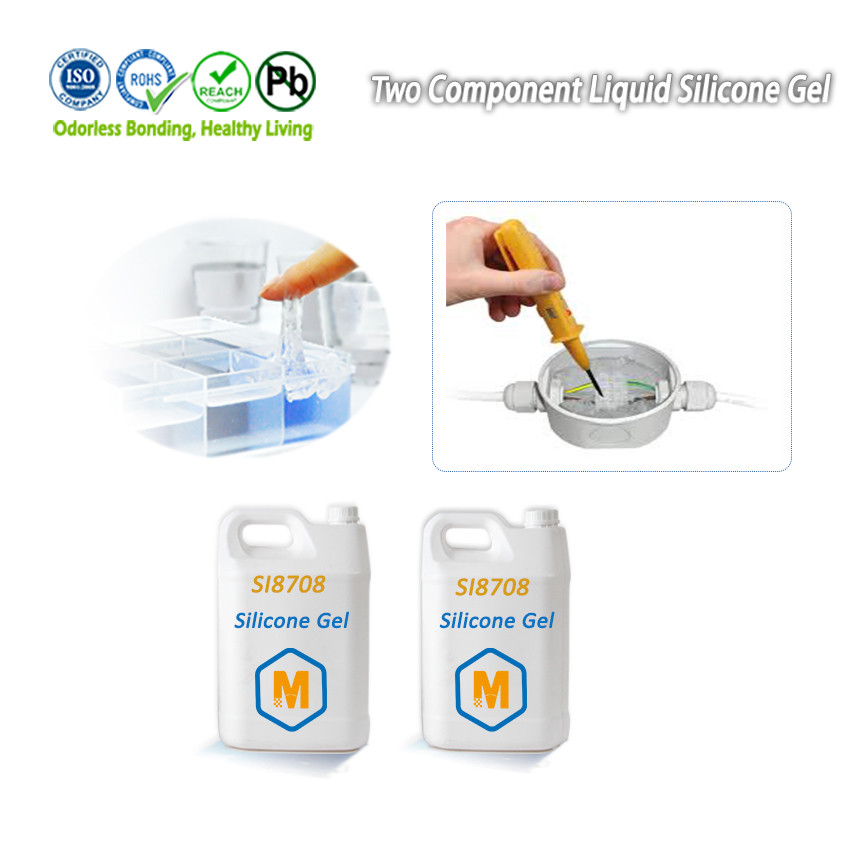

Electrical insulation and moisture protection for low-voltage applications, particularly suitable for insulating cables and wires in junction boxes.
● FIll, Encapsilation, potting : filling junction boxes. Encapsulating or potting electrical components or enclosure. Encapsulating electronic boards and components.
Industrial: Electronic contracting Telecommunications manufacturing Robotics Marines and Aquatics DIY Electronics.
∎Technical Data Table
Note:All above data were tested under standardized condition, or tested by further experiments.
∎Key Features
- 1:1 addition type, good adhesive strength and self-healing
- High elongation, excellent flexibility for mechanical stress relieving
- Low oil penetration after cured, good anti-poisoning property
- Good dielectric in high temperature for high voltage protection
- Excellent aging resistance and weatherability
- Excellent waterproof, corrosion prevention, moisture proof and chemical media resistance
∎Packing Specification
●Part A—10 KG/Bucket
●Part B—10 KG/ Bucket.
∎Transport &Storage
● When stored at or below 25°C in the original unopened containers, this product has a usable life of 12 months from the date of production. Sampling test is necessary for products which exceed shelf life before taking use.
It’s non-dangerous goods, can be transported as normal chemicals, CAUTION leakage during transport.
.∎Directions for Use
-
Mix Part A and Part B by 1:1 mass ratio, after evenly mixed, pouring directly into the components or modules as per requirements.
- Still the potted component to let out the bubbles. It can be heat cured, about 30mins in 80°C. It needs about 10 hours cured under room temperature.
- Vacuum defoaming can improve the performance of cured product.
- Seal the remaining products tightly after use.
- Low temperature will slow the curing speed; heat curing is recommended.
- It's hard for SI8708 to cure if contact with sulfur, amine or Sn
∎Attention of operation
●Keep away from Children
●Avoid contact with eyes and skin. If contact with your skin, scrub first with soap water or alcohol, then rinse with water. If contact with your eyes, rinse with plenty of water, and seek medical treatment immediately.
● It is forbidden to build on the surface of the wet substrate.
∎Safety Operation Data
MSDS isn't included here. Please read TDS, MSDS and label carefully before operation. You can get MSDS from MAXTECH or other distributors, or mail to service center maxtech@shmaxtech.com
∎Warranty and Liability
All product properties and application details based on information believe to be reliable and accurate. But you still need to test its property and safety before application. The advice we supply don't apply in any circumstances. MAXTECH don't make assurance of any other applications outside the specification until MAXTECH supply a special written guarantee. MAXTECH is only responsible to replace or refund if this product is defective within the warranty period stated above. MAXTECH makes it clear that will not be liable of any accidents.
Any inquiry, welcome to talk more with us , contact us sally, sally@shmaxtech.com; +8618321208486
